Summary
The dry screw vacuum pump is a rotor that uses a pair of parallel screws to make synchronous, high-speed and reverse rotation in the pump housing. The rotor and the inner wall of the pump body form a number of sealing spaces. During the rotation, the continuous transmission of gas is formed to achieve the purpose of suction and exhaust.
The screw vacuum pump has a simple structure, but its processing technology requires higher requirements. It must ensure that the height between rotors is parallel, and that between rotors and between rotors and the inner wall of the pump body, there is a very small gap and no friction caused by contact, so as to ensure the realization of gas transmission and reduce gas backflow without the need for oil lubrication and sealing.
Product Features and Advantages:
Water-cooled Design: Our Water-cooled Dry Screw Vacuum Pump is equipped with an advanced water-cooling system, ensuring higher efficiency and stability during operation. This design eliminates the need for external cooling systems, making it a cost-effective solution.
Dry Screw Technology: The innovative dry screw design eliminates the risk of oil contamination, making it ideal for applications where oil-free vacuum is required. This feature ensures clean and reliable operation, minimizing maintenance and downtime.
High Pumping Speed: With a maximum pumping speed of [insert value] m³/h, our Water-cooled Dry Screw Vacuum Pump offers fast and efficient vacuum generation, significantly reducing process time and improving productivity.
Ultimate Vacuum Level: Achieve an impressive ultimate vacuum level of [insert value] mbar with our Water-cooled Dry Screw Vacuum Pump. This ensures a reliable and consistent vacuum performance, critical for various industrial applications.
Energy-efficient Operation: Our Water-cooled Dry Screw Vacuum Pump is designed to minimize energy consumption without compromising performance. This feature not only reduces operational costs but also contributes to a sustainable and eco-friendly working environment.
Application area
1. Semiconductor industry: Dry screw vacuum pumps can be used in processes such as wafer manufacturing, thin film deposition, and chemical vapor deposition in the semiconductor industry to extract residual gases and impurities.
2. Medical and pharmaceutical industries: In the pharmaceutical and medical fields, dry screw vacuum pumps can be used in sterilization, distillation, freeze-drying, and purification processes to help maintain a highly clean environment and stable pressure.
3. Photovoltaics: Dry screw vacuum pumps can be used in the production of solar panels to remove impurities and odors during the production process.
4. Food industry: dry screw vacuum pump is used for spices, essence, food packaging, etc. Specific applications, vacuum distillation, molecular distillation, solvent recovery, oil and gas recovery, general vacuum in factories, electronics, and vacuum coatings.
5. Aviation and nuclear industries: can remove ordinary air, flammable and explosive gases, corrosive gases, especially in environments that require high levels of clean vacuum. For example: vacuum coating, vacuum distillation, vacuum drying, single crystal pulling, special gas manufacturing, ion etching, etc.
Technical parameters
Type | Basic parameters | ||||||||
Pumping speed | Presure limit (Pa) | Power (kW) | revolution (rpm) | Inlet caliber | outlet caliber mm | Cooling water volume | noise dB(A) | Overall dimension | |
LGV-180 | 180 | 5 | 4 | 2900 | 40 | 40 | 2 | <78 | 1157x375x734 |
LGV-250 | 250 | 5 | 5.5 | 2900 | 50 | 40 | 5.5 | <78 | 1462x417x820 |
LGV-360 | 360 | 5 | 7.5 | 2900 | 50 | 40 | 4 | <78 | 1462x455x820 |
LGV-540 | 540 | 5 | 15 | 2900 | 65 | 50 | 8 | <80 | 1578x543x860 |
LGV-720 | 720 | 5 | 18.5 | 2900 | 80 | 65 | 10 | <80 | 1623x562x916 |
LGV-1100 | 1100 | 5 | 22 | 2900 | 100 | 80 | 14 | <80 | 1866x598x1050 |
LG V-1800 | 1800 | 5 | 37 | 2900 | 150 | 100 | 20 | <80 | 2092x951 x 1150 |

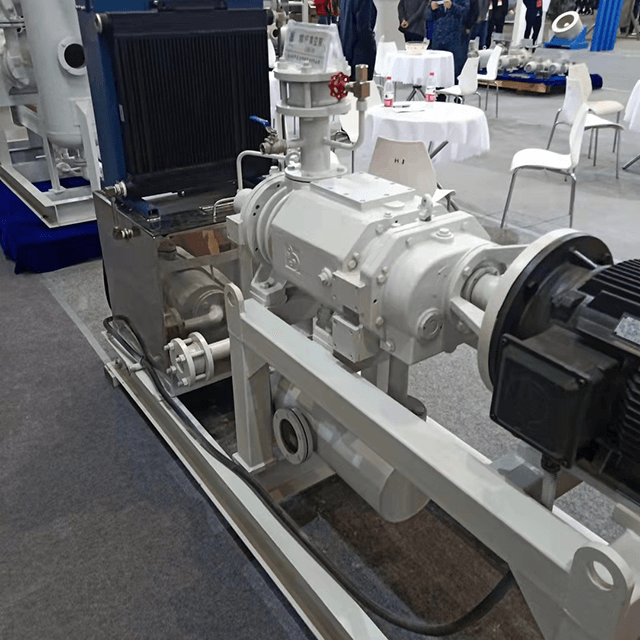

Water cooling Dry screw vacuum pump
Factory Shooting
Workshop shooting, complete equipment, and rich production experience
