Summary
The water (liquid) ring vacuum pump is mainly used for axial suction of gas without particles. The working medium is clean water at room temperature, and other media such as acid and alkali can also be used as the working fluid for special requirements. Its gas volume range is 4.8-4503/mim, the ultimate vacuum degree is 33hpa or 160hpa, and the efficiency is 40-65%. It is widely used in industries such as electricity, chemical engineering, coal mining, papermaking, plastic machinery, environmental protection, medical treatment, pharmaceuticals, food, mineral processing, petrochemical, light industry, packaging, metallurgy, building materials, stone tools, fertilizers, etc.
Working principle
In general, the working fluid of a water ring vacuum pump is mostly directly discharged, as shown in Figure 1:
Fig. 1 Schematic Diagram of Working Fluid Supply and Discharge of General Water Ring Vacuum Pump
The water discharged by the water ring vacuum pump enters a large circulating water tank or is directly discharged. This water supply and drainage method is convenient to connect, simple to use, and widely used in practical applications.

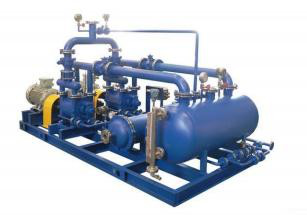

2BW series liquid ring vacuum pump closed circuit circulation system is a complete set of equipment composed of 2BV or 2BE series liquid ring vacuum pump, steam water separator, heat exchanger and various pipeline accessories. Compared with a single liquid ring vacuum pump, it is more convenient to install. Because the working fluid can be recycled, the system greatly reduces the consumption of working fluid and the pollution to the environment, so it has obvious advantages in situations where the extracted gas contains toxic, organic solvents, inflammables and explosives.
The working fluid of the liquid ring vacuum pump closed-circuit circulating system can use a variety of media: water, methanol, ethanol, xylene, aniline acetone, and other organic solvents, transformer oil, etc.
Flow chart of closed circuit circulating system (unit) of 2BW liquid ring vacuum pump, one for operation and one for standby
N1.1 Inspiratory port 011 Pressure gauge 031 valve 032 Check valve 030 suction pipeline 012 Pressure gauge
N2.1 Exhaust port 041valve 020 separator 010 Vacuum pump 021 Liquid level meter 061 valve
N3.2 Overflow port 040 Exhaust pipe 051 valve 013 thermometer 060 Blowdown pipeline
N3.3 Rehydration port 050 Working fluid line N3.1 Drain outlet N4.1 Cooling water inlet N4.1Cooling water outlet
1、The unit is supplied as a complete set of equipment, including gas-liquid separator, condenser (heat exchanger), rack, internal pipeline and other accessories, which is more convenient for users to install and can greatly shorten users' installation cycle.
2、The working fluid can be water or chemical solvent, which greatly reduces the environmental pollution of chemical enterprises.
3、If the pumped medium is used as the working fluid, the pumped medium can be recovered.
4、The 2BW series closed circuit circulating cup system shall be designed according to the user's inlet conditions, cooling water conditions, exhaust port conditions, etc. It is a non-standard product.
