Product Description

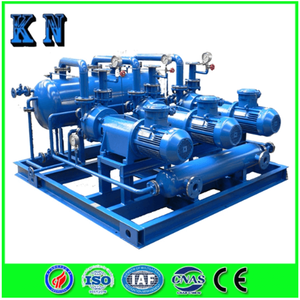

The 2SK series water ring vacuum pump and compressor are used to extract or compress air and other non corrosive, insoluble, and solid particle free gases, in order to form vacuum and pressure in a closed container. The inhaled gas allows for a small amount of liquid to be mixed.
Application area
The 2SK series water ring vacuum pump and compressor are widely used in the fields of machinery, petrochemicals, pharmaceuticals, food, sugar industry, and electronics. Due to the isothermal compression process of gas during work, it is less prone to danger when compressing and extracting explosive gases, making its application more widespread.
Product Features
Direct Drive Design: Our vacuum pump features a direct drive design, ensuring efficient and reliable operation.
High Efficiency and Energy Saving: With advanced technology, our pump offers high efficiency and energy-saving performance, reducing operating costs.
Condensing Water Ring Technology: The condensing water ring technology enhances the vacuum pump's performance, providing optimal suction power.
Robust and Reliable: Built with high-quality materials and precision engineering, our vacuum pump offers exceptional durability and reliability.
Installation and Maintenance: To ensure proper installation and maintenance, please refer to the provided installation and maintenance guide. Regular maintenance will extend the pump's lifespan and minimize the risk of malfunctions.
Technical parameter
model | Maximum air extraction capacity m3/min | Ultimate vacuum | power kw | speed r/min | Water supply L/min | Total weight of pump kg | Recommended alternatives |
2SK-1.5 | 1.5 | -735mmHg (-0.098MPa) | 4 | 1440 | 10-15 | 200 | 2BV5 110 |
2SK-3 | 3 | 7.5 | 1440 | 15-20 | 310 | 2BV5 111 | |
2SK-6 | 6 | 15 | 1440 | 25-35 | 460 | 2BV5 131 | |
2SK-12 | 12 | 22 | 970 | 40-50 | 730 | 2BE1 202 | |
2SK-20 | 20 | 45 | 740 | 60-80 | 1650 | 2BE1 252 | |
2SK-30 | 30 | 55 | 740 | 70-90 | 2300 | 2BE1 253 |
● The power of 2SK-P1 series two-stage water ring vacuum pump atmospheric jet pump unit is the same as that
of 2SK series, the limit vacuum degree is - 750mmHg, and the air extraction rate is shown in the performance curve.
Note:
1. The performance indexes and performance curves listed in the table are measured under the following specified conditions,
◆ The atmospheric pressure is 0.101325MPa (760mmHg)
◆ Inlet water temperature 15 ℃
◆ Suction air temperature 20 ℃
◆ Relative air humidity 70%
2. The water supply is the value when the suction pressure is -0.05MPa (- 400mmHg), and it can be greater than this value when the vacuum limit is reached.
3. Performance tolerance ± 10%
Factory Shooting
Workshop shooting, complete equipment, and rich production experience
